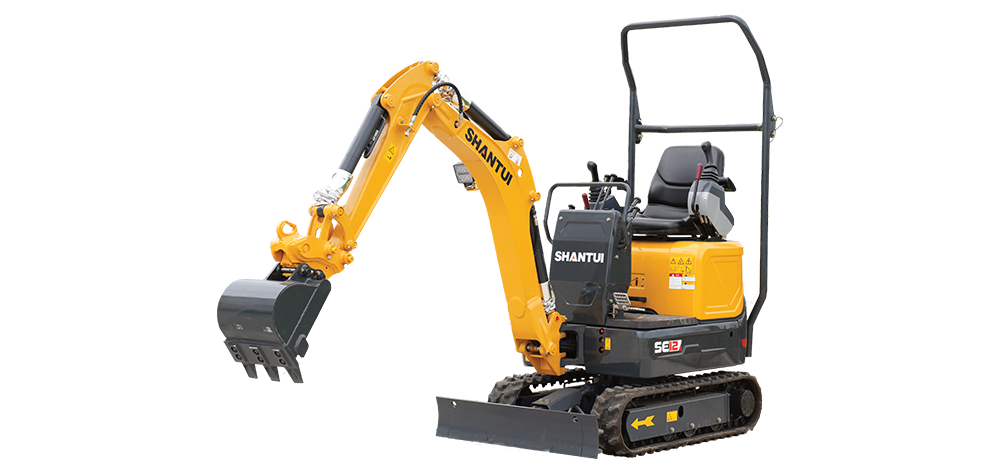

SE12SR
Mini Excavator
SE12SR
  • Operating weight(kg)
    1200
  • Engine power(kW/rpm)
    9.8/2300
  • Bucket capacity(m³)
    0.022
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.

Ease of maintenance and operation comfort

The machine is equipped with the mechanical suspension seat, the high-power hot air system. The machine is equipped with Bluetooth radio. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.

Adaptability to diverse working conditions

The machine features a zero-tail swing design, chassis with variable width, and a boom side swing structure, making it appropriate for operations in narrow spaces. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.

Parameter
Parameter SE12SR
Operating weight(kg) 1200
Engine power(kW/rpm) 9.8/2300
Bucket capacity(m³) 0.022
External dimensions(mm) 3025*830/1000*2260
Bucket rod digging force(kN) 10.2
Bucket digging force(kN) 10.4k
Rotating speed(r/min) 0-11
Travel speed(km/h) 2/3.5
Maximum digging height(mm) 2980
Maximum digging distance(mm) 3360
Maximum digging depth(mm) 1860
Emissions (Indicated as per international standards) Stage V
