The battery, motor, and electronic control system has become the benchmark in the industry and the traction battery has been packed in whole;
The constant and variable displacement hydraulic system can realize the compound action of the equipment, improving the work efficiency by 10%;
The loader is optimally matched with +357kwh Weichai battery, which meets the endurance demand of 6-10 hours;
Over-the-air (OTA) upgrading function is provided for overseas program. The loader features electronically controlled shift fork transmission and super large driving space;
The direct-connected motor has no input transmission shaft, the hood can be opened at a large angle with one button, and the filter elements are centrally arranged.

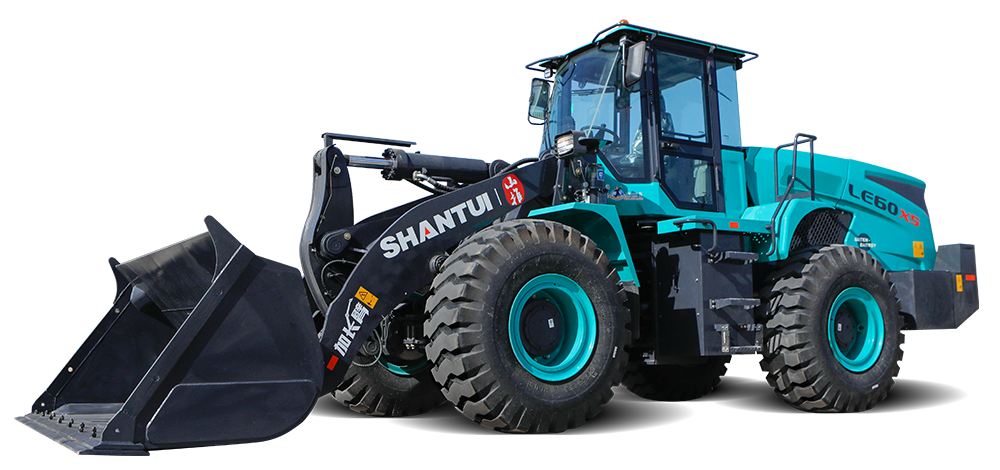

| Parameter | LE60X5-CE |
|---|---|
| Total power(kw) | 100 |
| Operating weight(kg) | 19100 |
| Bucket capacity(m³) | 3 |
| External dimensions(mm) | 8930*3030*3440 |
| Rated loading capacity(t) | 6 |
| Maximum dumping height(mm) | 3340 |
| Dumping distance(mm) | 1170 |
| Subtotal(s) | 9.5 |
| Wheelbase(mm) | 3400 |
| Maximum speed(km/h) | 13.5/38 |
| Emissions (Indicated as per international standards) | ELECTRIC |
