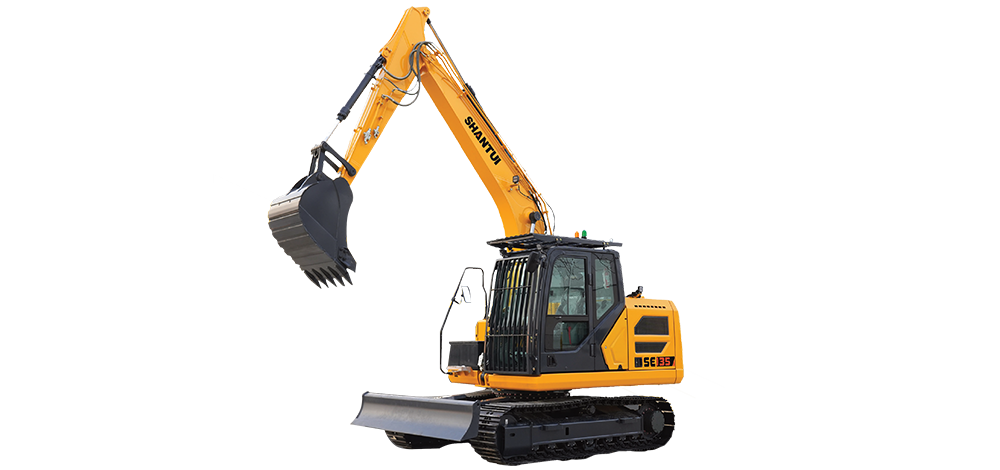

SE135
Small Excavator
SE135
  • Operating weight(kg)
    14620
  • Engine power(kW/rpm)
    90/2200
  • Bucket capacity(m³)
    (0.3-0.65)0.6
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Green and efficient

The excavator is equipped with Weichai WP4.1 high-power customized turbocharged engine that does not require 8h regeneration.
Large displacement hydraulic system allows for good maneuverability and smooth action.

Reliable and durable

Benefiting from 40 years of experience in manufacturing of excavators of four wheels and one track of Shantui, the excavator has its bucket optimized and equipment strengthened.

Comfortable and intelligent

The 10.1" intelligent touch screen displays four working modes and accommodates one-key start button, enabling intelligent interaction and intelligent control. The brand-new cab is formed by integral stamping, with the tightness improved by 30% and noise reduced by 2dB. It has a wide view for safe and comfortable operation.

Convenient maintenance

The 265L fuel tank extends the refueling period to more than 3 days, and the fuel consumption for wave pressure is 15L less than that in the third stage, reducing maintenance cost.

Parameter
Parameter SE135
Operating weight(kg) 14620
Engine power(kW/rpm) 90/2200
Bucket capacity(m³) (0.3-0.65)0.6
External dimensions(mm) 7920*2645*3263
Bucket rod digging force(kN) 70
Bucket digging force(kN) 97
Rotating speed(r/min) 0-10.9
Travel speed(km/h) 3.2/5.4
Maximum digging height(mm) 8495
Maximum digging distance(mm) 7820
Maximum digging depth(mm) 5490
Emissions (Indicated as per international standards) STAGE V
