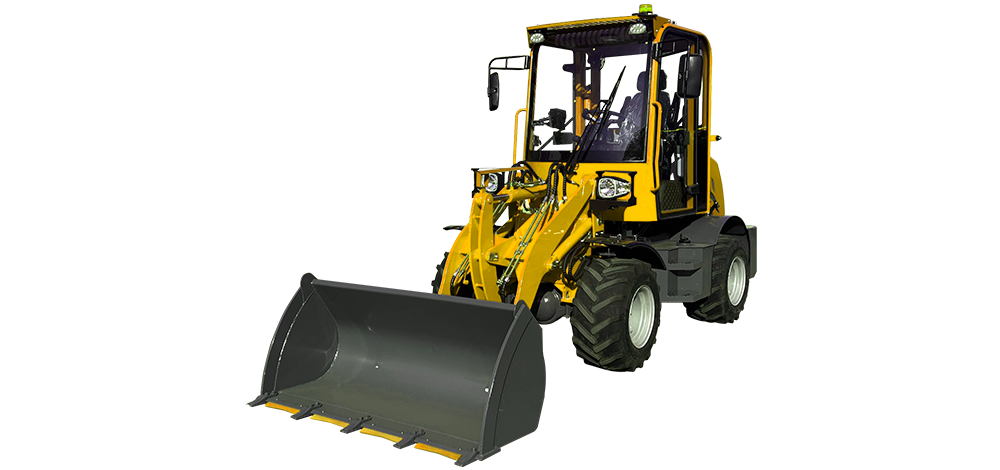

L08-M
Small Loader
L08-M
  • Total power(kw)
    18.4
  • Operating weight(kg)
    2840
  • Bucket capacity(m³)
    0.45
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Adaptability to diverse working conditions
This model is characterized by its exceptional maneuverability, making it well-suited for operations in confined and narrow spaces. It can be easily equipped with various attachments, making it versatile and applicable to a wide range of applications, including municipal engineering, agriculture and animal husbandry, sanitation, and building construction.
Ease of maintenance and operation comfort
The rear hood is designed with a large-angle backward flipping feature, offering spacious maintenance area. The optimized layout of filter elements renders convenient and efficient maintenance.
Configuration selling point
The energy-saving and efficient engine is perfectly matched with the transmission and axles, resulting in rapid power response, exceptional stability, and high operational efficiency.
Parameter
Parameter L08-M
Total power(kw) 18.4
Operating weight(kg) 2840
Bucket capacity(m³) 0.45
External dimensions(mm) 4800×1700×2580
Rated loading capacity(t) 0.8
Maximum dumping height(mm) 2100
Dumping distance(mm) 935
Subtotal(s) 9.5
Wheelbase(mm) 1875
Maximum speed(km/h) 20
Emissions (Indicated as per international standards) Eu stag V
